0 comments on “Know what this is?”

Know what this is?

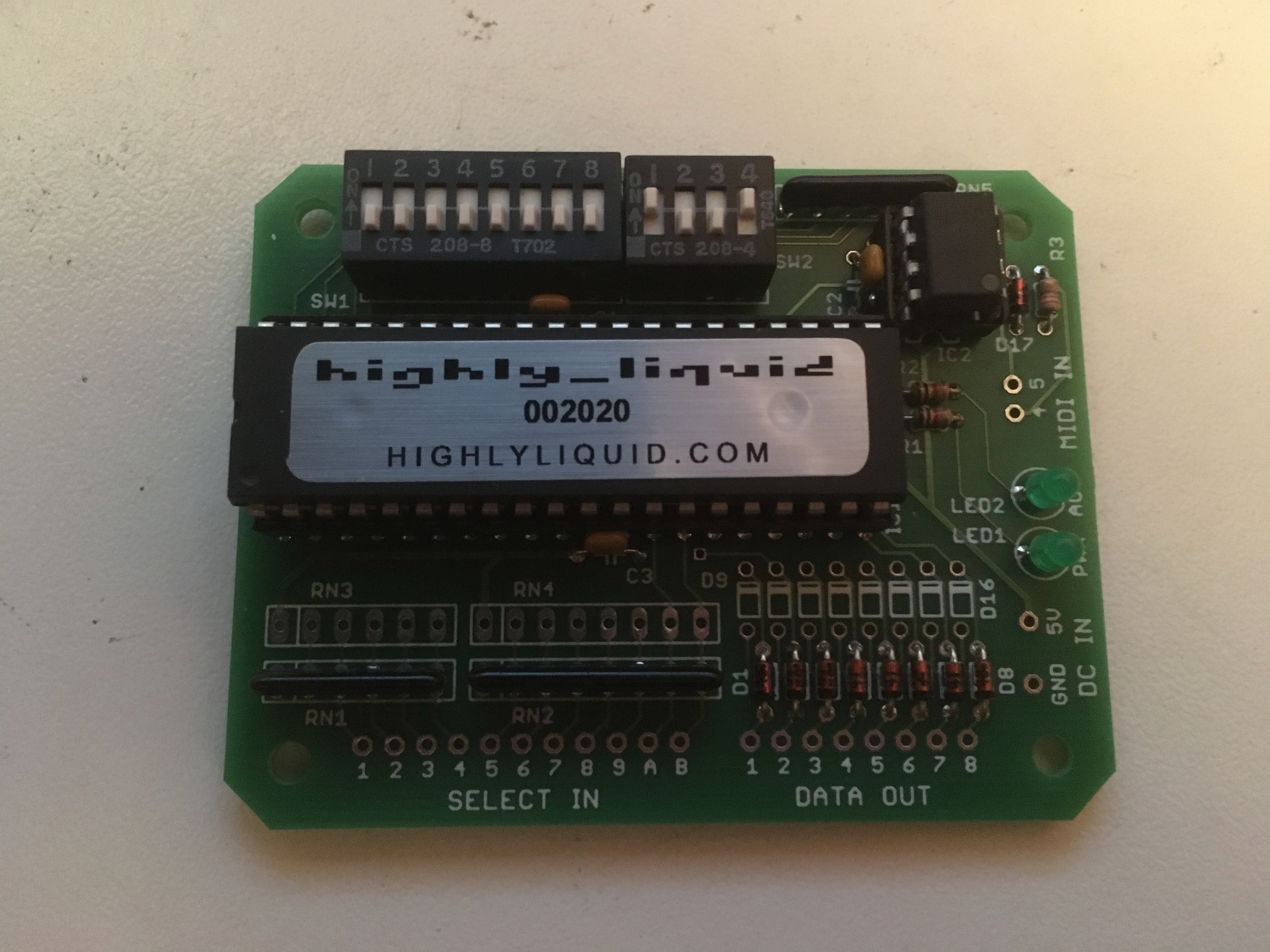

IMG_1706

It’s a fairly rare MIDI kit for a Casio VL-1. I’m not building it myself, it’s just too fidly, but I have some plans to be able to use a VL-1 over MIDI. We’ll see where that goes.

Advertisements
0 comments on “Then I found my old VL-1 MIDIfier kit!”

Then I found my old VL-1 MIDIfier kit!

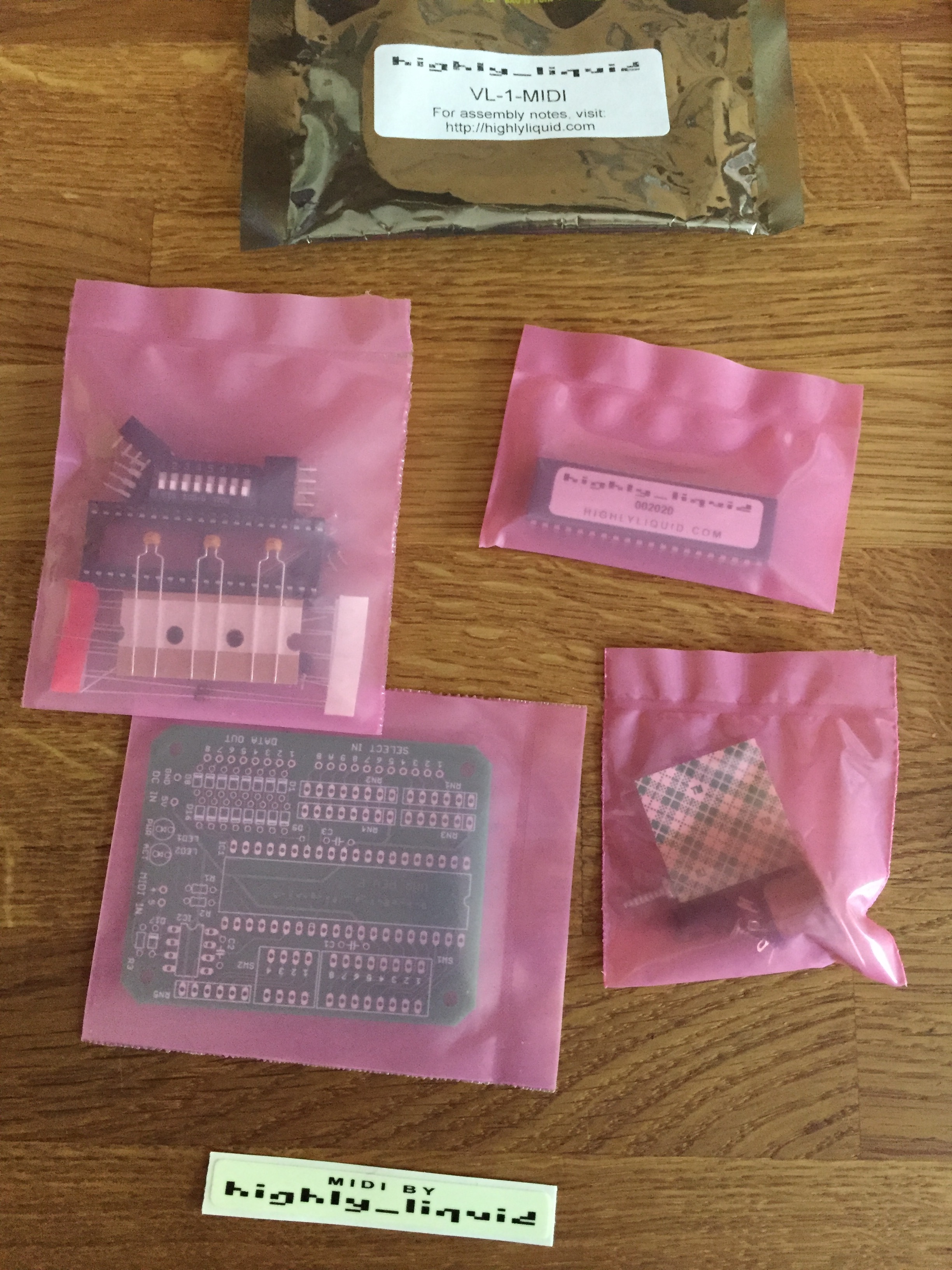

VL1 MIDIfier kit
VL1 MIDIfier kit

I was looking for something else when I found this! I knew, or at least I seemed to remember that I’d bought one of these ages ago. Well I’ve found it and I’m planning to get it going soon(-ish). Ideally I’d like to get it running so that I can get it to work with my VL1 bot. We’ll see about that.

0 comments on “Using Conductive Ink Proximity Pads with Ableton”

Using Conductive Ink Proximity Pads with Ableton

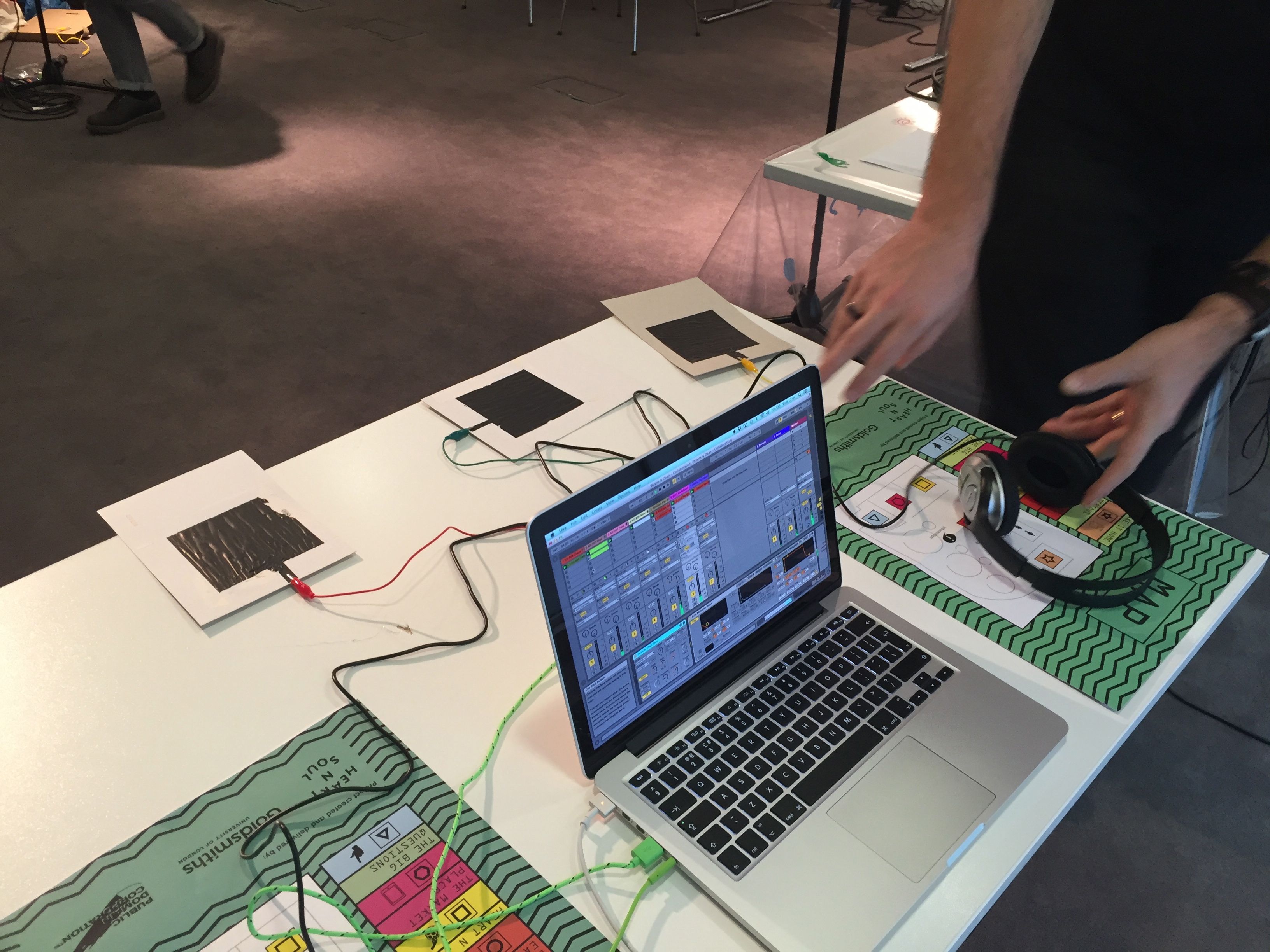

Conductive Ink Proximity Pads controlling Ableton
Conductive Ink Proximity Pads controlling Ableton

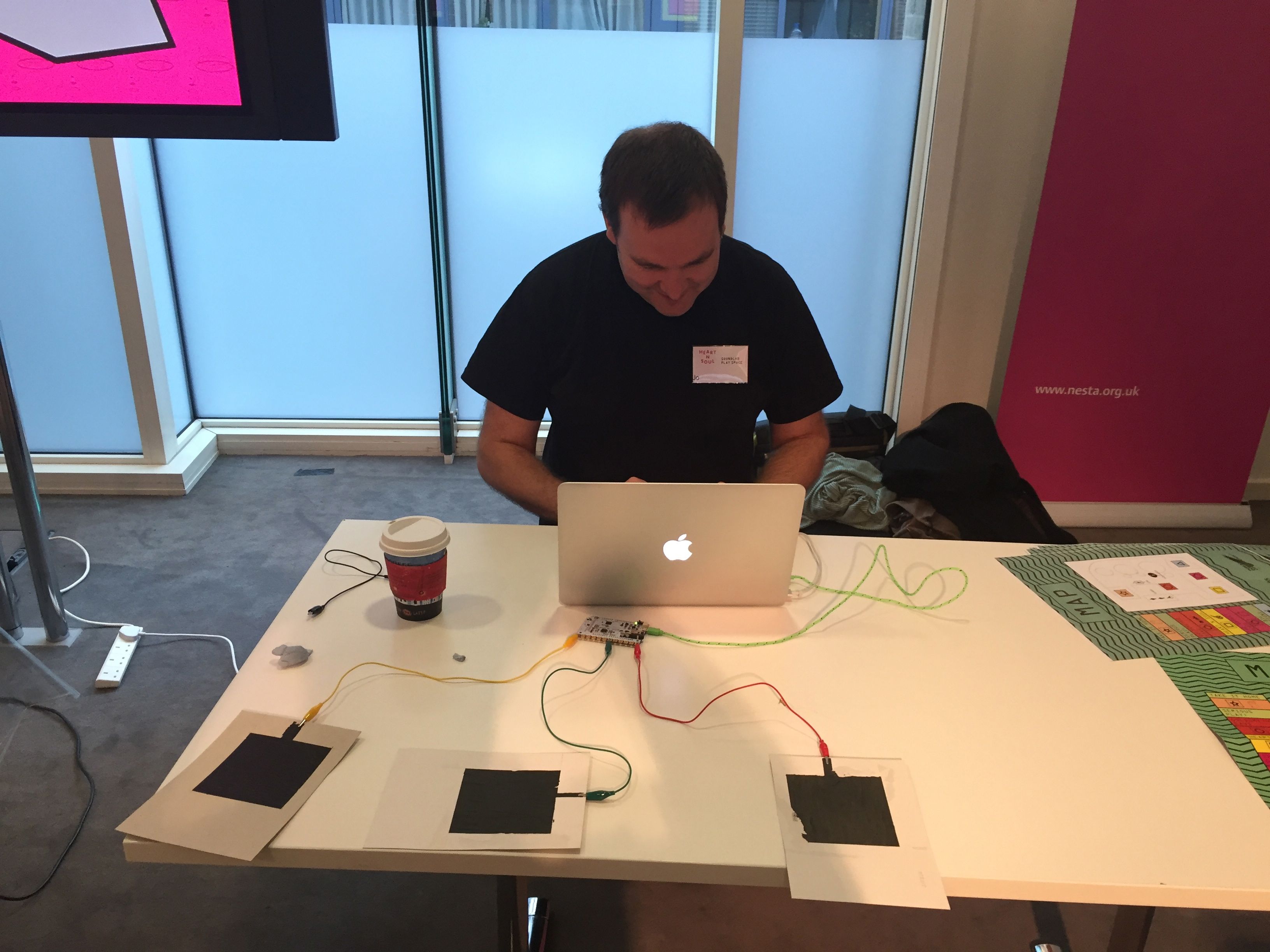

Jo setting up the Conductive Ink Proximity Pads
Jo setting up the Conductive Ink Proximity Pads

One of the technologies we had on show at the SoundLab Play Space was Bare Conductive’s Conductive Ink and TouchBoard. We used these to connect to Ableton Live and control a variety of parameters in a set. It took quite a lot of tinkering around to get the pads and the board to work as we wanted, and a lot of time to calibrate the pads to get them sensing and sending MIDI CCs.

Hopefully I’ll be able to release to arduino code for the set we used soon. Hopefully I’ll be able to make some videos too to show how to get it done.

I think that that the TouchBoard is a really cheap and simple way to create effective gestural control via MIDI.

0 comments on “More on making conductive ink pads for proximity sensing”

More on making conductive ink pads for proximity sensing

Drawing up proximity pads
Drawing up proximity pads

After experimenting with my previous cards I decided to try a larger and denser pad for use as a proximity sensor.

There was a very good little tutorial on the Bare Conductive site so I used that. As you can see above it very sensibly suggests the use of masking tape to make these pads. I followed the instructions and made 4 pads in the end.

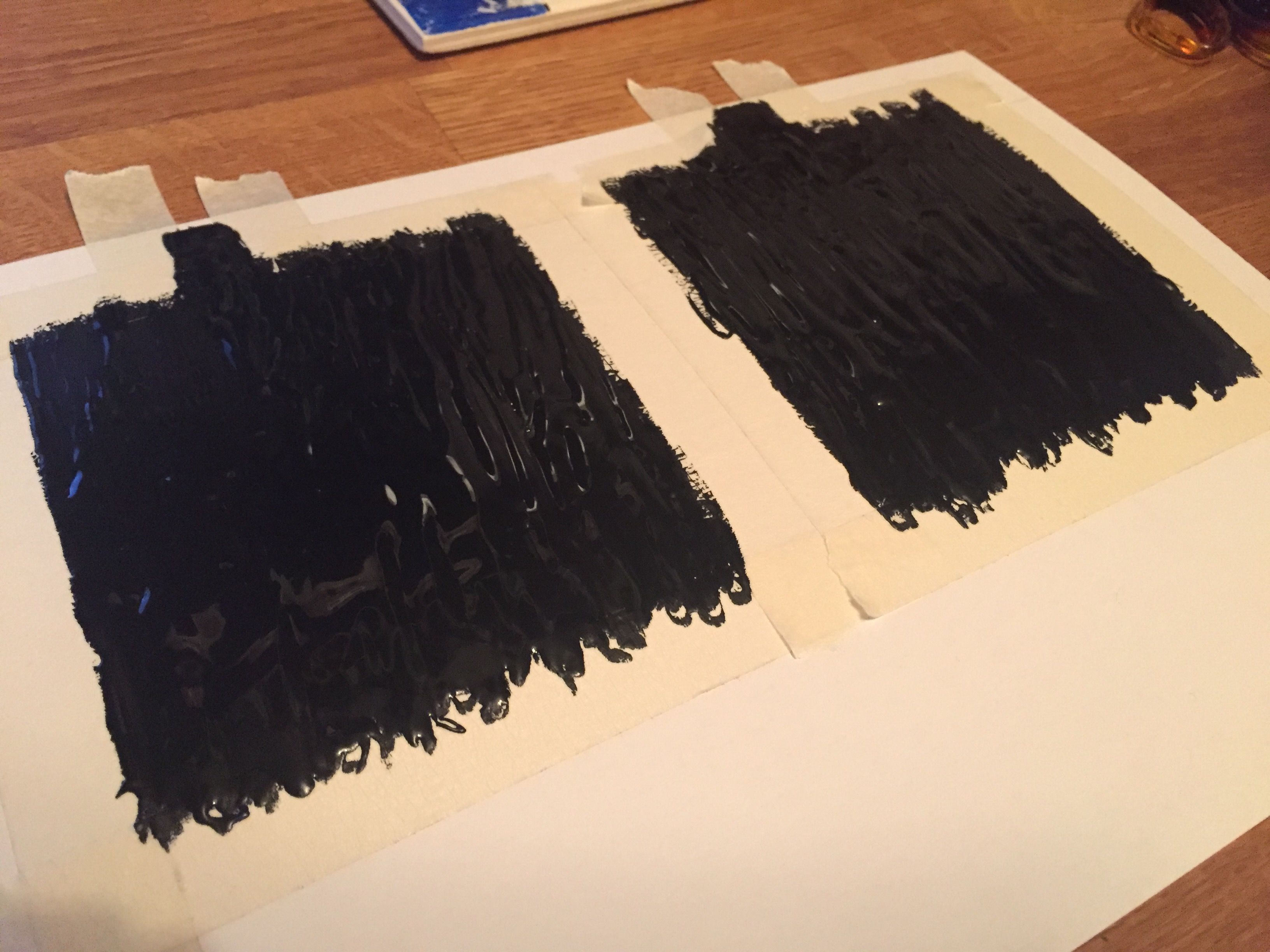

Proximity pads drying out
Proximity pads drying out

Whilst the tape removal wasn’t an entire success it was ok and didn’t stop the pads from working which was good.

Conductive ink
Conductive ink

I’m planning to post a much larger post around how to get these pads to work for music and how best to get the code up and running too. It might take a little while to get that going though, so hopefully it’ll be in a week or two.
